Medical Technology

Our battery solutions for medical technology are specially developed for use in medical devices and systems where maximum reliability and consistent performance are crucial. They secure the power supply for diagnostic, therapeutic and monitoring devices – both in stationary and mobile applications – and meet strict quality and safety standards. With long-life lithium systems, we offer tailor-made solutions for clinics, laboratories, research institutions and manufacturers of medical devices.

Filter
LiBrick S12-7.5 T1
LiBrick S12-7.5 T1
Type: LiFePO4 Nominal Voltage: 12.8 V Capacity: 7.5 Ah @ 0.2C Continuous discharge current: 20 A Peak discharge current: 37.5 A Peak discharge duration: 5 s Connection: T1 Housing: ABS, UL-94 V-0 Serial connection: / Parallel connection: max. 4 Size: 151 x 65 x 92 mm ±2mm (+2mm T1) Weight: 1.1 kg
Learn more

delivery time on request

LiBrick S12-7.5 T2
LiBrick S12-7.5 T2
Type: LiFePO4 Nominal Voltage: 12.8 V Capacity: 7.5 Ah @ 0.2C Continuous discharge current: 15 A Peak discharge current: 45 A Peak discharge duration: 5 s Connection: T2 Housing: ABS, UL-94 V-0 Serial connection: / Parallel connection: max. 4 Size: 151 x 65 x 92 mm ±2mm (+2mm T2) Weight: 1.1 kg
Learn more

delivery time on request

LiBrick S12-12 T2
LiBrick S12-12 T2
Type: LiFePO4 Nominal Voltage: 12.8 V Capacity: 12 Ah @ 0.2C Continuous discharge current: 30 A Peak discharge current: 36 A Peak discharge duration: 5 s Connection: T2 Housing: ABS, UL-94 V-0 Serial connection: / Parallel connection: max. 10 Size: 151 x 98 x 93 mm ±2mm (+3mm T2) Weight: 1.38 kg
Learn more

delivery time on request

LiBrick S12-20
Type: LiFePO4 Nominal Voltage: 12.8 V Capacity: 20 Ah @ 0.2C Continuous discharge current: 20 A Peak discharge current: 60 A Peak discharge duration: 5 s Connection: M5 Housing: ABS, UL-94 V-0 Serial connection: / Parallel connection: max. 10 Size: 181 x 77 x 168 mm ±2mm Weight: 2.35 kg
Learn more

delivery time on request

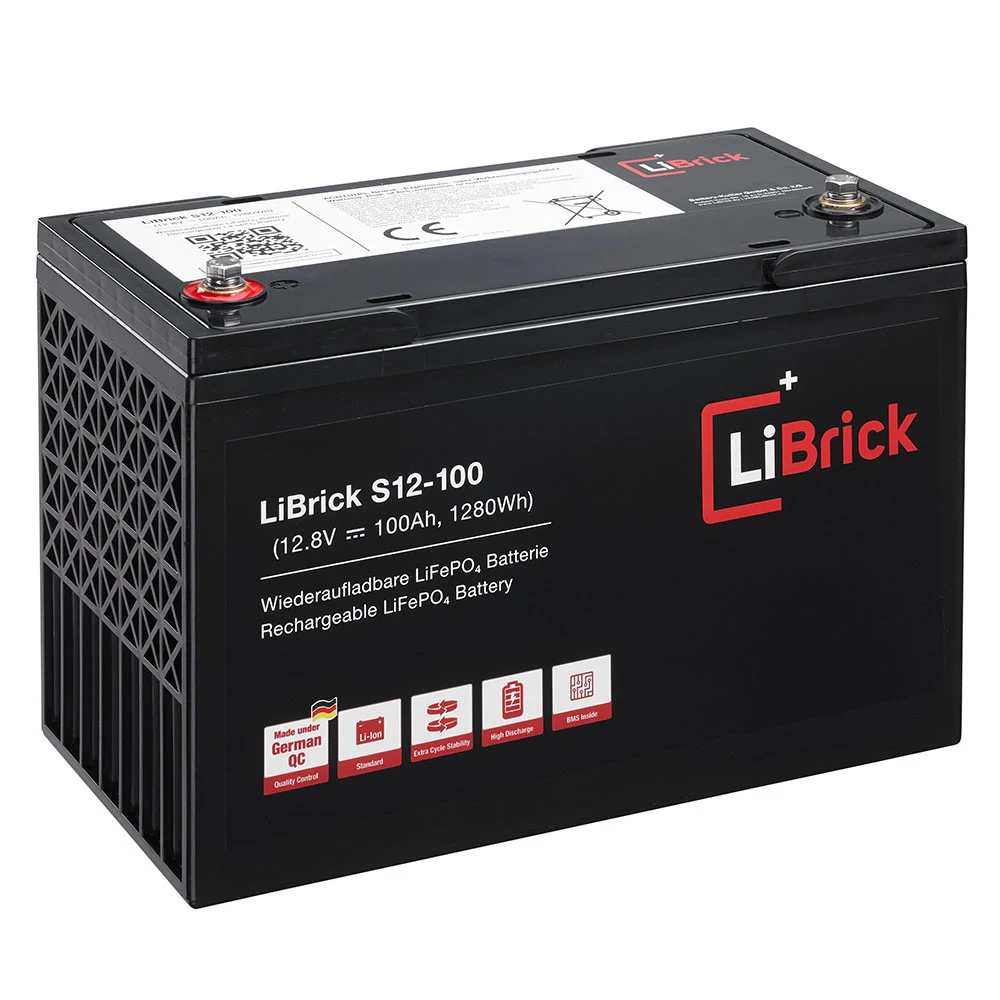

LiBrick S12-100
LiBrick S12-100
Type: LiFePO4 Nominal Voltage: 12.8 V Capacity: 100 Ah @ 0.2C Continuous discharge current: 100 A Peak discharge current: 200 A Peak discharge duration: 5 s Connection: M8 Housing: ABS, UL-94 V-0 Serial connection: / Parallel connection: max. 10 Size: 330 x 173 x 212 mm ±2mm (+2 mm M8) Weight: 10 kg
Learn more

delivery time on request

LiBrick S12-10 T2
LiBrick S12-10 T2
Type: LiFePO4 Nominal Voltage: 12.8 V Capacity: 10 Ah @ 0.2C Continuous discharge current: 15 A Peak discharge current: 50 A Peak discharge duration: 50-300 s Connection: T2 Housing: ABS, UL-94 V-0 Serial connection: / Parallel connection: max. 4 Size: 151 x 65 x 92 mm ±2mm (+2 mm T2) Weight: 1.3 kg
Learn more

delivery time on request

LiBrick S24-10 CAN
LiBrick S24-10 CAN
Type: LiFePO4 Nominal Voltage: 25,6 V Capacity: 10 Ah @ 0.2C Continuous discharge current: 20 A Peak discharge current: 30 A Peak discharge duration: <4 s Connection: M5 Housing: ABS, UL-94 V-0 Serial connection: / Parallel connection: max. 4 Size: 181 x 77 x 168 mm ±2mm (+ 15-65mm Weipu) Weight: 2.7 kg
Learn more

delivery time on request

LiBrick S24-20 CAN
Type: LiFePO4 Nominal Voltage: 25,6 V Capacity: 20 Ah @ 0.2C Continuous discharge current: 40 A Peak discharge current: 80 A Peak discharge duration: 5 s Connection: M6 Housing: ABS, UL-94 V-0 Serial connection: / Parallel connection: max. 4 Size: 195 x 130 x 183 mm ±2mm Weight: 4.5 kg
Learn more

delivery time on request

LiBrick S48-20 CAN
LiBrick S48-20 CAN
Type: LiFePO4 Nominal Voltage: 48 V Capacity: 20 Ah @ 0.2C Continuous discharge current: 20 A Peak discharge current: 60 A Peak discharge duration: 1 s Connection: M6 Housing: ABS, UL-94 V-0 Serial connection: / Parallel connection: max. 4 Size: 260 x 168 x 210 mm ±2mm (+ 15-65mm Weipu) Weight: 8.4 kg
Learn more

delivery time on request

LiBrick S24-3.3 T2
LiBrick S24-3.3 T2
Type: LiFePO4 Nominal Voltage: 25,6 V Capacity: 3.3 Ah @ 0.2C Continuous discharge current: 25 A Peak discharge current: 30 A Peak discharge duration: 5 s Connection: T2 Housing: ABS, UL-94 V-0 Serial connection: / Parallel connection: max. 4 Size: 151 x 65 x 92 mm ±2mm (+2 mm T2) Weight: 1.2 kg
Learn more

delivery time on request

LiBrick S12-150 CAN
LiBrick S12-150 CAN
Type: LiFePO4 Nominal Voltage: 12.8 V Capacity: 150 Ah @ 0.5C Continuous discharge current: 150 A Peak discharge current: 250 A Peak discharge duration: <3 s Connection: M8 Housing: ABS, UL-94 V-0 Serial connection: / Parallel connection: max. 4 Size: 335 x 175 x 190 mm ±2mm (+ 15-65mm Weipu) Weight: 15.5 kg
Learn more

delivery time on request
