LiBrick UP10

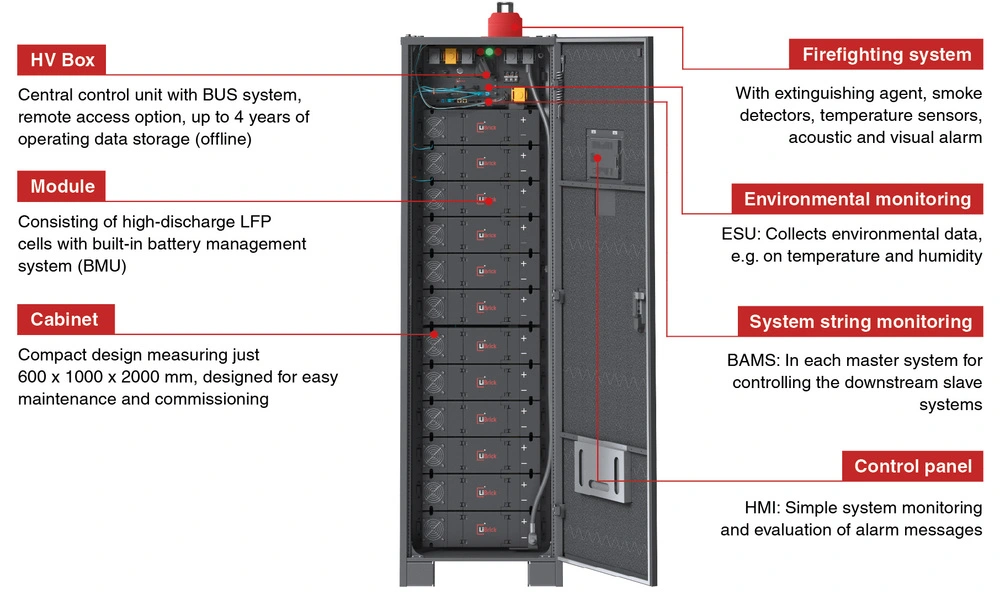

The LiBrick UP10 is a modular UPS battery storage system based on modern LFP technology that combines high efficiency, maximum safety and a particularly compact design. Up to eight storage units can be operated in parallel and flexibly equipped with 8 to 12 modules each. An optional centre tap (8, 10 or 12 modules) allows for voltage levels precisely tailored to your application.

A multi-level safety concept completes the overall profile: thermal separation layers between the cells divide each module into separate fire compartments, while an integrated BMU monitors the modules in real time.

Environmental monitoring with smoke and temperature sensors and an automatic extinguishing system provides additional protection. With a footprint of only 0.6 m² and a floor load of 1.5 t/m², the LiBrick UP10 makes optimal use of available space. Thanks to pre-assembled delivery on a pallet, commissioning is quick and easy. In addition, the designed service life of 15 years sustainably reduces your operating costs – for reliable safety today and in the future.
